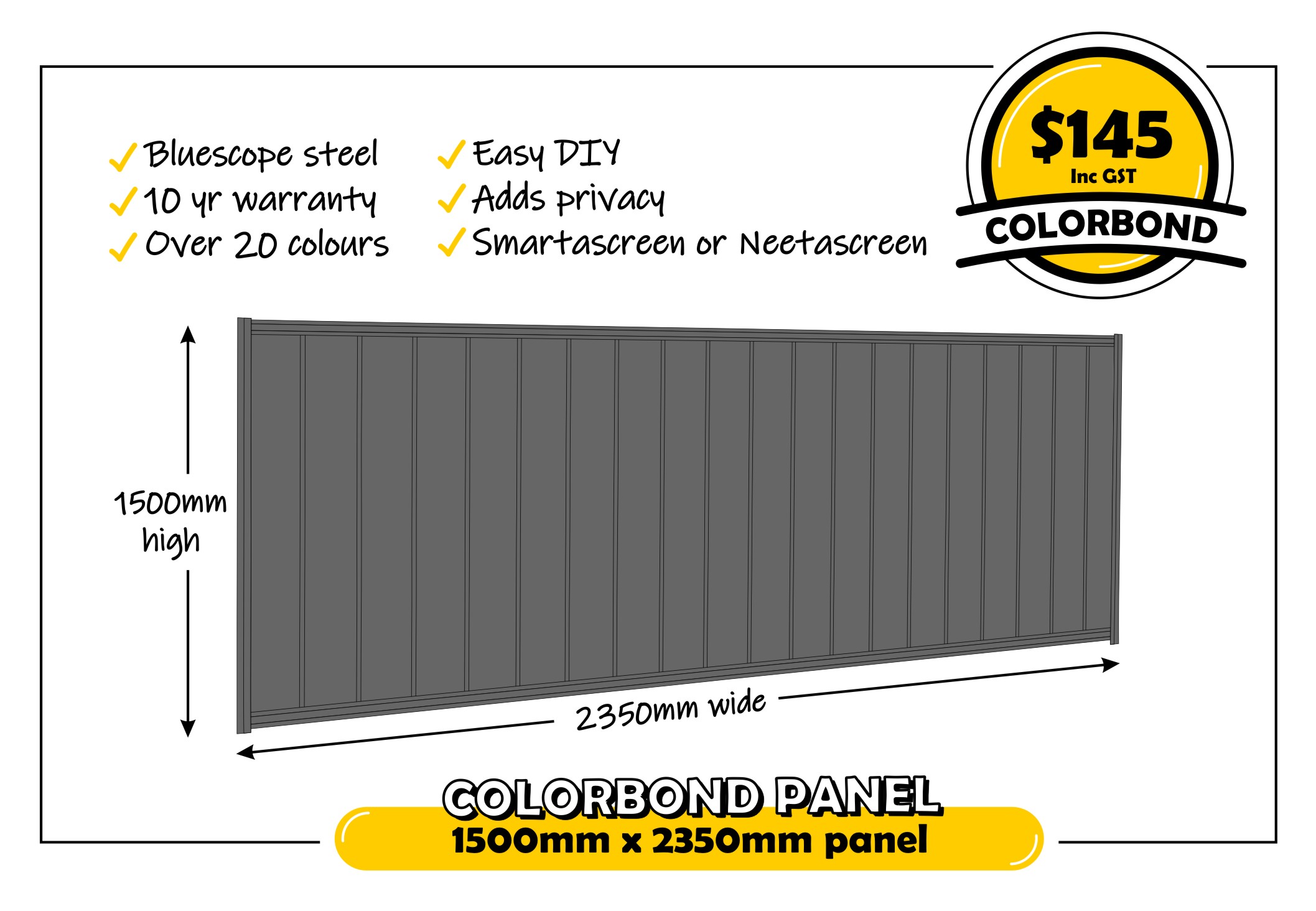

Product: 1500mm high x 2350mm wide Genuine Colorbond Panel
Description: 1500mm high x 2350mm wide
Available in 'Smartascreen' design or standard 'Neetascreen' design
Included components for 2350mm wide panel:
2 x 2100 channel posts
2 x 2350mm rails
3 x 1490mm sheets
15 x coloured tek screws + 1 x double post cap
Price: $141 inc GST
Available Colours: See PDF brochure at the bottom of this page
Product: 1500mm high x 3100mm wide Genuine Colorbond Panel
Description: 1500mm high x 3100mm wide
Available in 'Smartascreen' design or standard 'Neetascreen' design
Included components for 3100mm wide panel:
2 x 2100 channel posts
2 x 3100mm rails
4 x 1490mm sheets
15 x coloured tek screws + 1 x double post cap
Price: $176 inc GST
Available Colours: See PDF brochure at the bottom of this page

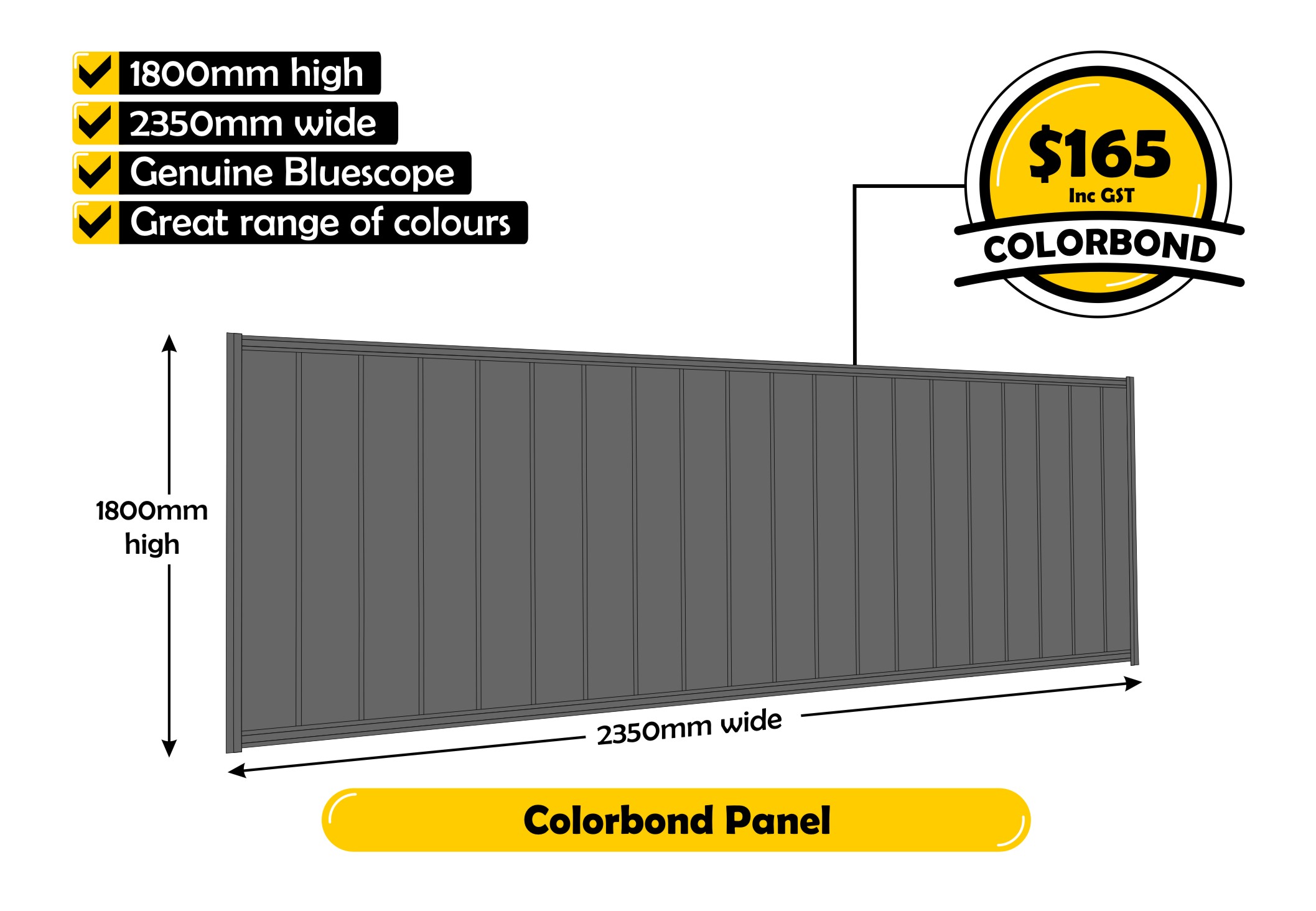

Product: 1800mm high x 2350mm wide Genuine Colorbond Panel
Description: 1800mm high x 2350mm wide
Available in 'Smartascreen' design or standard 'Neetascreen' design
Included components for 2350mm wide panel:
2 x 2400 channel posts
2 x 2350mm rails
3 x 1790mm sheets
15 x coloured tek screws + 1 x double post cap
Price: $160 inc GST
Available Colours: See PDF brochure at the bottom of this page
Product: 1800mm high x 3100mm wide Genuine Colorbond Panel
Description: 1800mm high x 3100mm wide
Available in 'Smartascreen' design or standard 'Neetascreen' design
Included components for 3100mm wide panel:
2 x 2400 channel posts
2 x 3100mm rails
4 x 1790mm sheets
15 x coloured tek screws + 1 x double post cap
Price: $200 inc GST
Available Colours: See PDF brochure at the bottom of this page

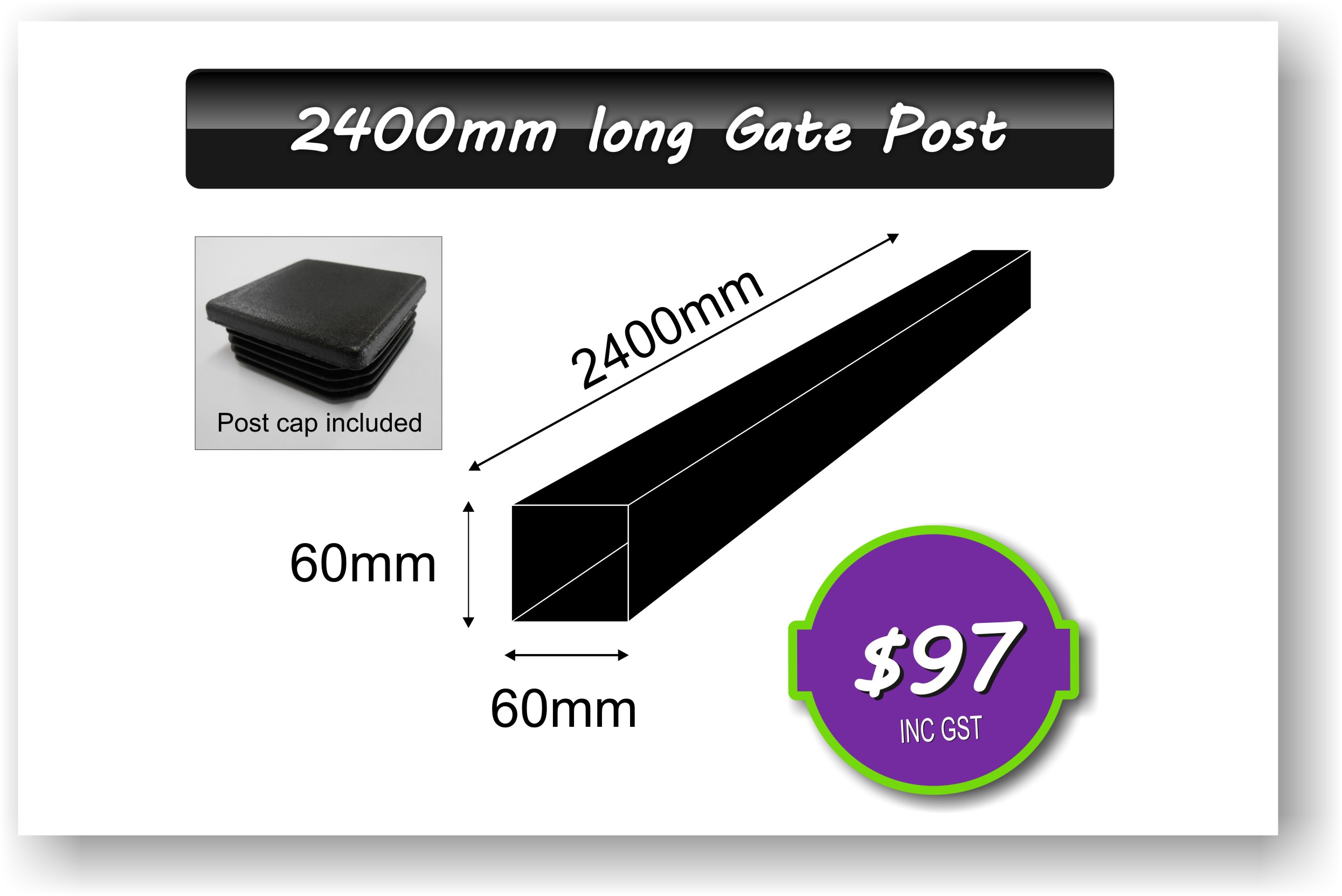

Product: 2400mm long Gate Post / Corner or end post
Description: 60mm x 60mm x 2400mm, powder coated to match Colorbond colours.
Included components:
1 x 60mm x 60mm x 2400mm Gate Post
1 x 60mm x 60mm plastic cap
Price: $97 inc GST

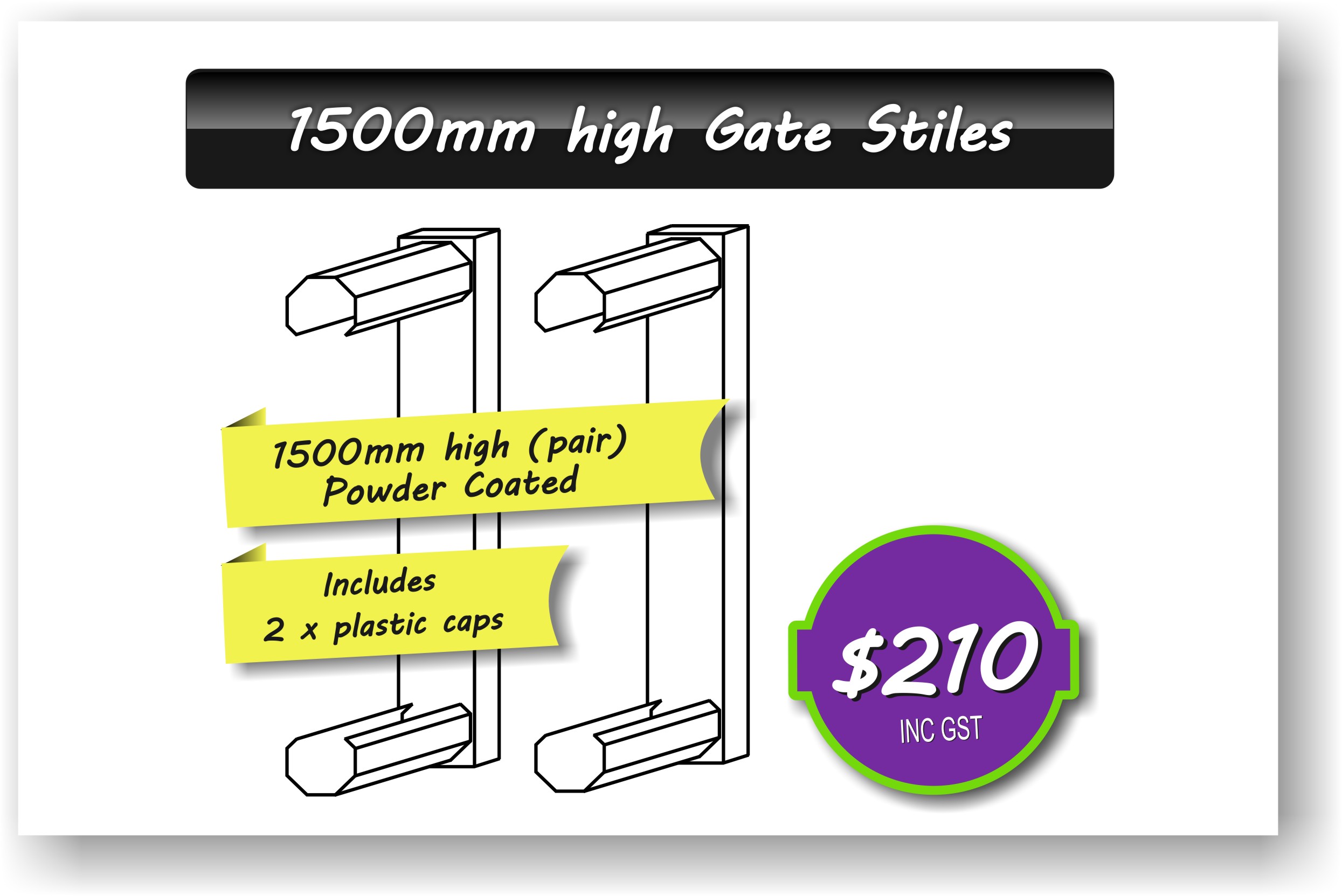

Product: 1500mm high Genuine Colorbond Gate Stiles (pair)
Description: 1500mm high, powder coated to match Colorbond colours. Gate stiles are made using 57mm x 35mm Gal RHS, with folded channel to accept Lysaght Colorbond rails.
Included components:
2 x 1500mm high gate stiles
2 x 57mm x 35mm plastic end caps (for top of each stile)
Price: $210 inc GST

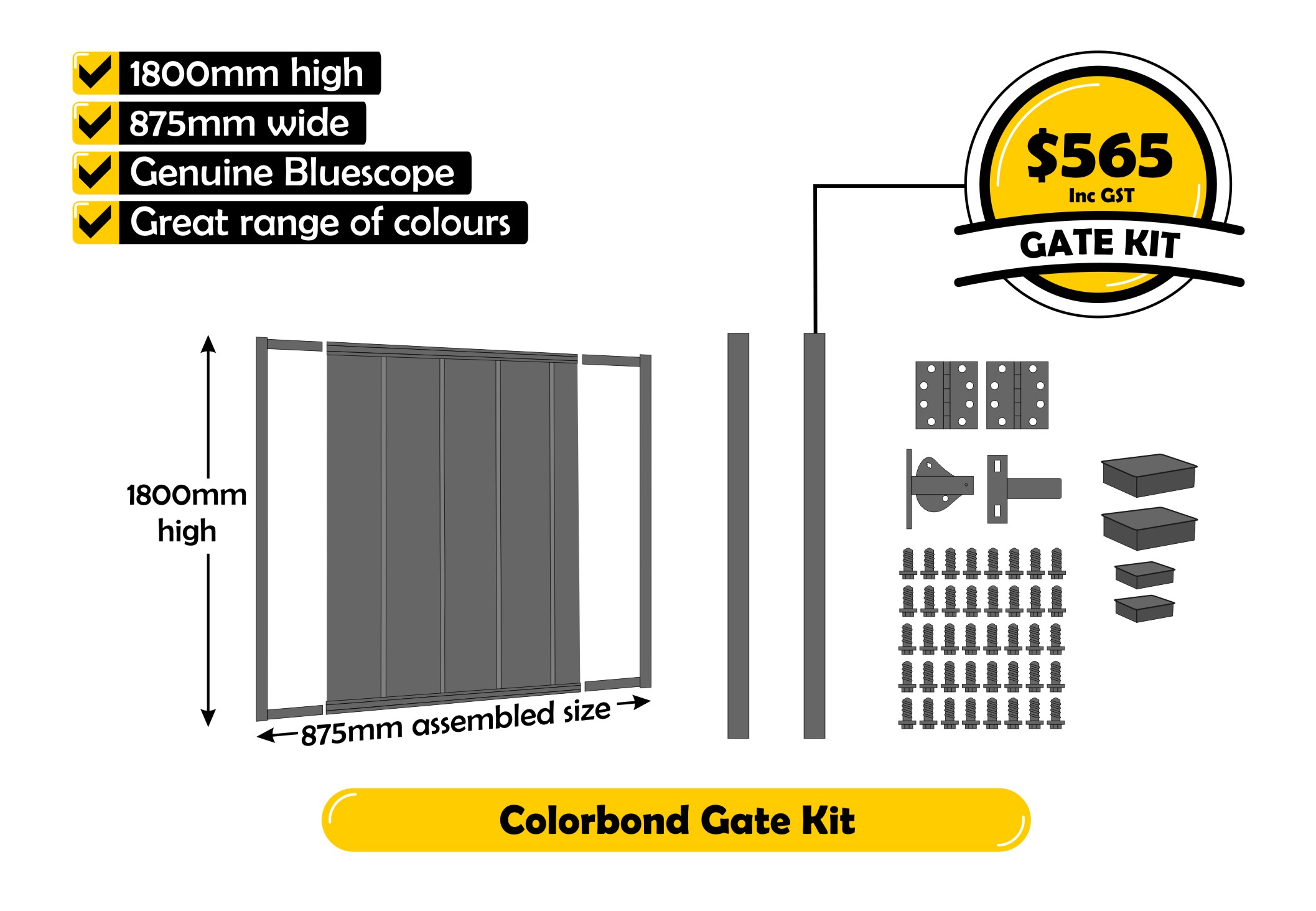

A standard single gate with 1 x sheet once assembled is 875mm wide, which suits an opening in between gate posts of 905mm.

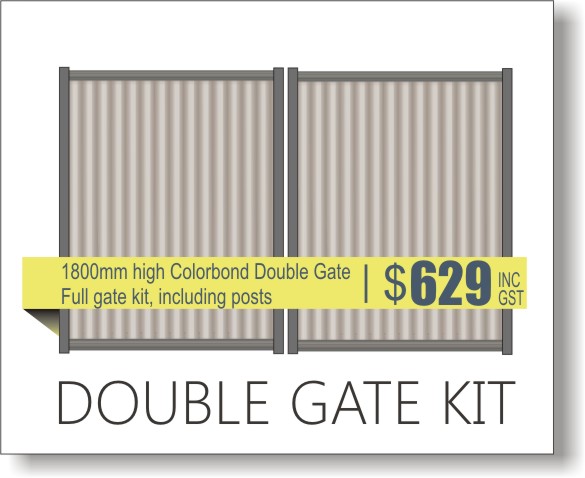

A standard double gate with 2 x sheets in each leaf, suits an opening in between gate posts of 3085mm.
Product: 1800mm high Genuine Colorbond Gate Stiles (pair)
Description: 1800mm high, powder coated to match Colorbond colours. Gate stiles are made using 57mm x 35mm Gal RHS, with folded channel to accept Lysaght Colorbond rails.
Included components:
2 x 1800mm high gate stiles
2 x 57mm x 35mm plastic end caps (for top of each stile)
Price: $220 inc GST
A standard single gate with 1 x sheet once assembled is 875mm wide, which suits an opening in between gate posts of 905mm.
A standard double gate with 2 x sheets in each leaf, suits an opening in between gate posts of 3085mm.

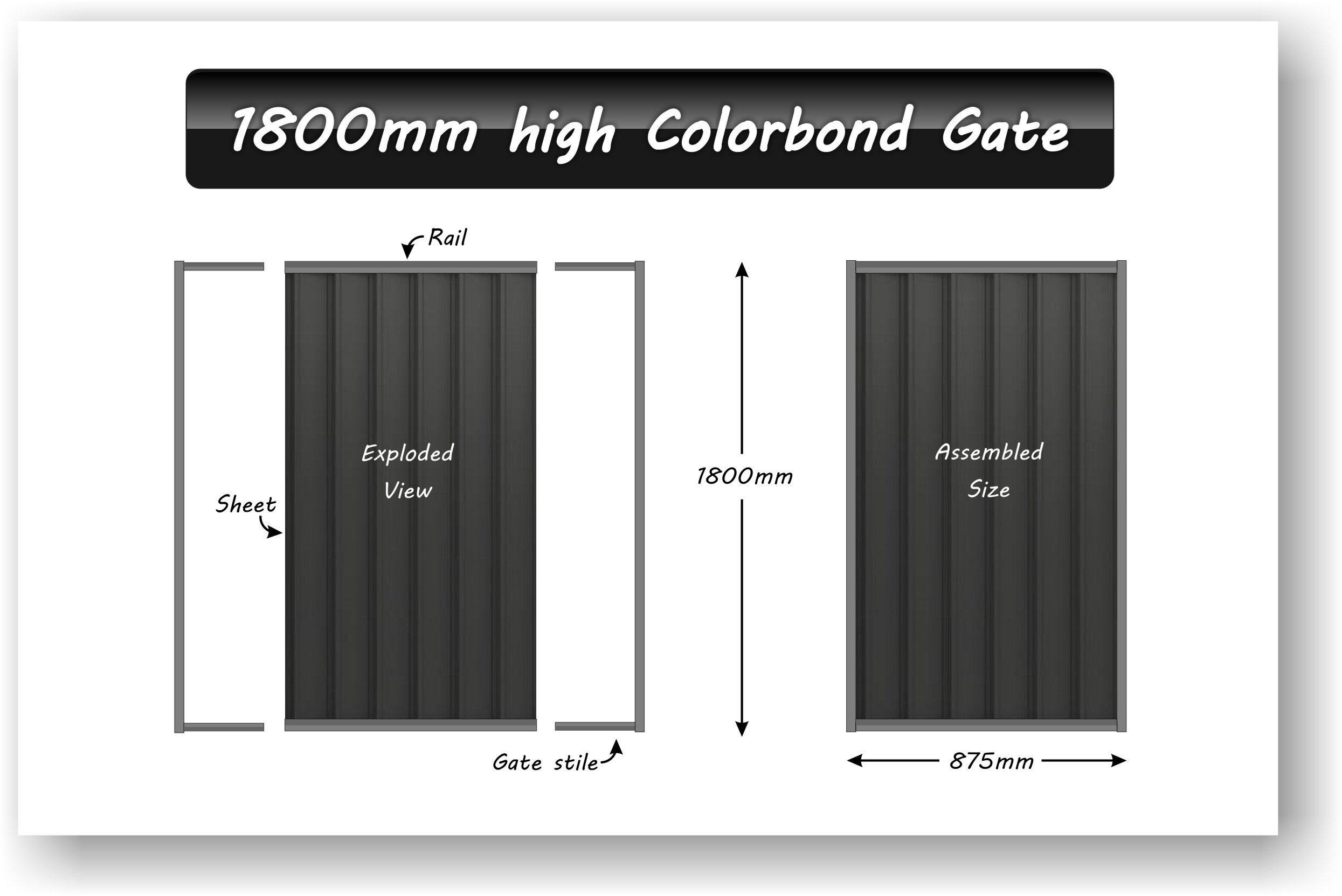

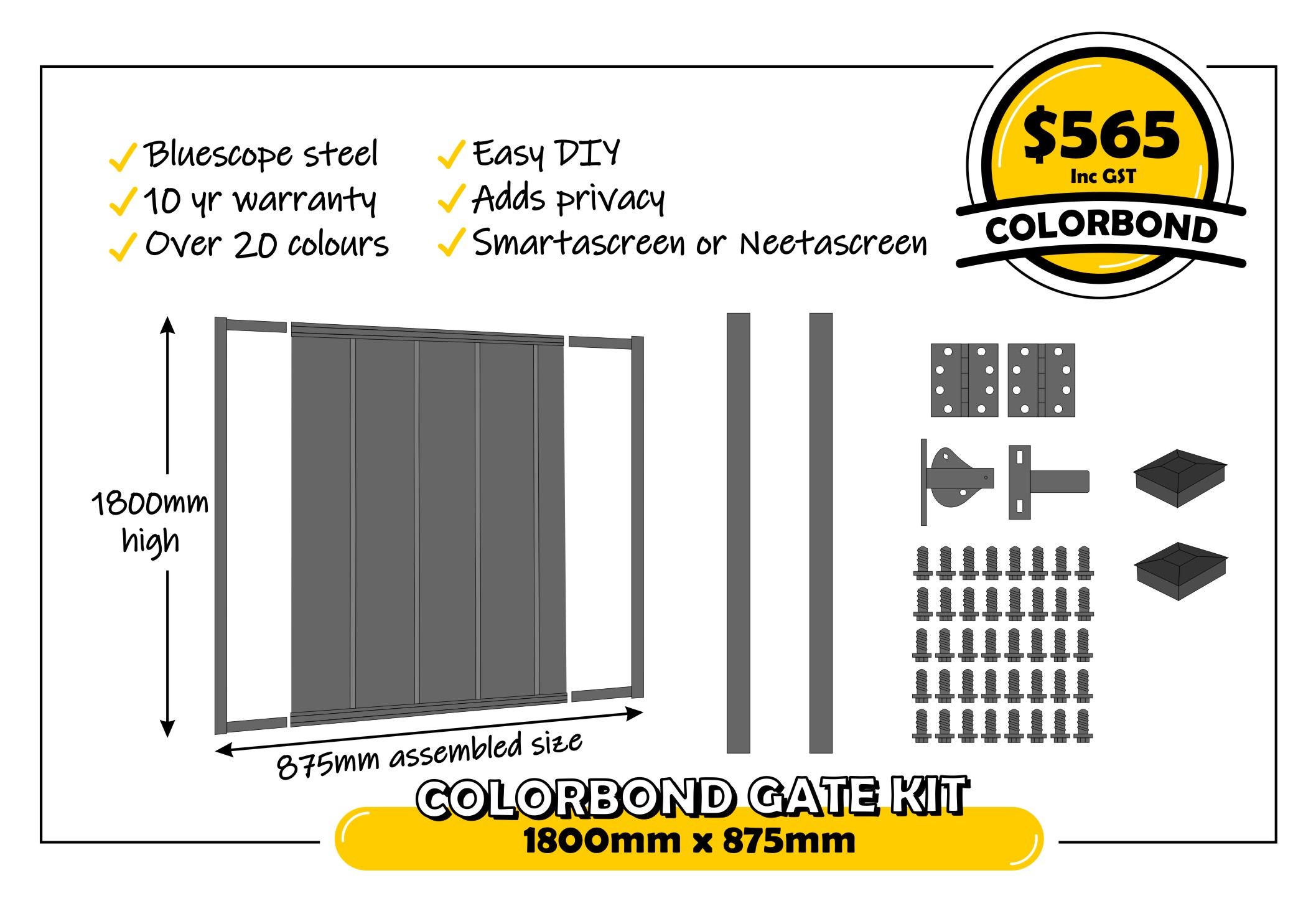

Cut 1 x 2350mm rail into 2 x sections at 805mm wide to suit the width of 1 x Colorbond sheet
Slide both rails onto 1 of the gate stiles, then insert the Colorbond sheet
Insert the second gate stile into the top and bottom rail to finish assembling the gate, then use 2 x 12-14x20 tek screws in each corner of the gate to hold the gate together (do this on both sides of the gate)
The width of the assembled gate is normally 875mm wide, which suits an opening in between the gate posts of 905mm
![]() |
